What is a Shaft?

A shaft is a cylindrical mechanical component that transmits power, motion, or torque from one part of a machine to another. Typically made from materials like steel, stainless steel, or aluminum, shafts serve as the key connecting elements in various mechanical systems. They are commonly used to drive gears, pulleys, wheels, and other rotating elements within machines. Shafts come in different sizes, lengths, and designs, depending on the application and the amount of torque or load they need to handle. They can be solid or hollow, depending on the requirements for strength, weight, or material efficiency.

Uses of Shafts

Shafts are essential components in a wide range of industries and applications where motion or torque transmission is required. Some of the most common uses include:

• Power Transmission: Shafts transmit power from the motor to various components in machinery, such as in gearboxes, pumps, turbines, and engines. They are used to connect different parts of mechanical systems and ensure smooth movement.
• Automotive Industry: In vehicles, shafts play a crucial role in transmitting torque from the engine to the wheels. They are used in drivetrain systems such as axles, drive shafts, and crankshafts.
• Industrial Machinery: Shafts are integral to industrial machines such as mills, lathes, and presses, where they connect various moving parts and ensure the transfer of rotational force.
• Conveyor Systems: In conveyor systems, shafts are used to drive rollers, drums, or pulleys, enabling the movement of goods along the conveyor belt.
• Aerospace: In aerospace applications, shafts are found in engines, turbines, and propulsion systems, where they are responsible for transmitting torque and rotational motion in high-stress environments.
• Agricultural Equipment: Shafts are used in agricultural machinery such as tractors, harvesters, and irrigation systems to transfer power and enable various operations like tilling, planting, or harvesting.
• Electric Motors and Pumps: In electric motors, shafts connect the rotor to the external load. Similarly, in pumps, they transfer energy from the motor to move liquids or gases through the system.

Additional Information

• Types of Shafts:

  • Transmission Shafts: These shafts are used to transfer torque and rotational motion between components in power transmission systems, such as in gearboxes, engines, and industrial machinery.
  • Drive Shafts: Common in automotive and machinery applications, drive shafts transmit power from the engine or motor to the wheels, axles, or other driven components.
  • Crankshafts: These shafts convert linear motion (from pistons) into rotational motion, commonly used in internal combustion engines and heavy machinery.
  • Axle Shafts: Axles are used to transmit rotational motion from the drivetrain to the wheels in vehicles and heavy equipment.
  • Torsion Shafts: Used in systems that require rotation under torque, torsion shafts are designed to handle twisting forces and are commonly found in machinery with rotary applications.
  • Propeller Shafts: Used in boats and aircraft, these shafts transfer power from the engine to the propeller, enabling thrust generation for movement.
  • Steering Shafts: Found in automotive systems, steering shafts connect the steering wheel to the steering mechanism, allowing for vehicle direction control.

• Material Choices: Shafts are made from materials that can withstand the stresses of mechanical movement, including:

  • Steel: Steel is commonly used for shafts due to its high strength and durability. It is suitable for applications requiring high torque and load-bearing capacity.
  • Stainless Steel: Corrosion-resistant and strong, stainless steel shafts are ideal for applications in harsh environments, such as food processing or pharmaceutical equipment.
  • Aluminum: Lightweight and resistant to corrosion, aluminum shafts are used in applications where weight is a concern without compromising too much on strength.
  • Carbon Fiber: Carbon fiber shafts are extremely lightweight yet strong, making them ideal for aerospace, automotive, and high-performance machinery applications where weight reduction is essential.
  • Bronze or Brass: These materials are used for shafts in environments that require resistance to corrosion and wear, such as in marine or chemical processing applications.

• Shaft Design Considerations:

  • Length and Diameter: The length and diameter of a shaft are crucial factors in determining its strength, load-bearing capacity, and rotational speed. Custom sizes can be designed to fit specific applications.
  • Keyways and Splines: Keyways and splines are features added to shafts to enable secure attachment of gears, pulleys, or other components. Keyways are grooves that allow a key to fit into the shaft, while splines are serrated surfaces that interlock with corresponding grooves in a component.

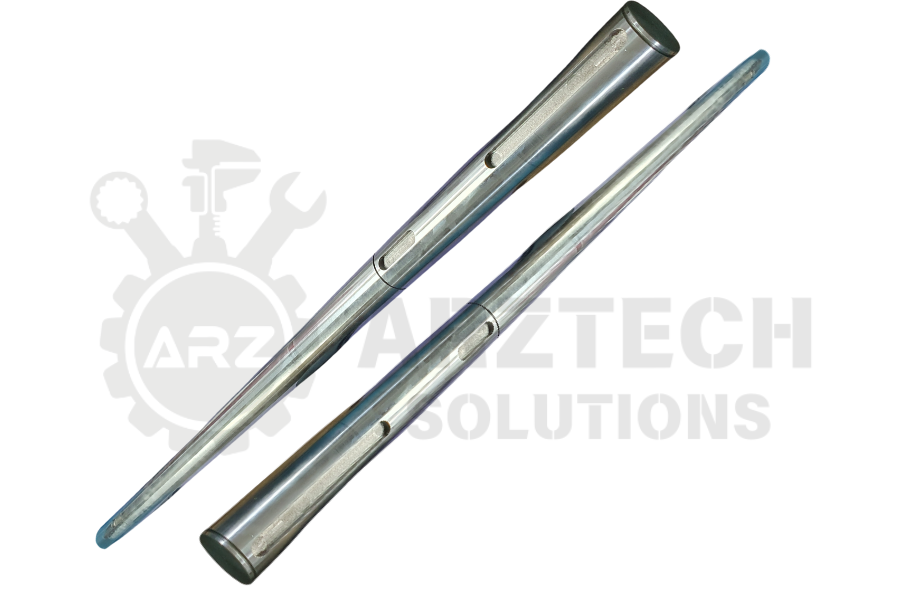

  • Tapered Shafts: Tapered shafts have a gradual decrease in diameter along their length, which helps in securing bearings or other components in place.
  • Hollow Shafts: Hollow shafts are used in applications where weight reduction is important without sacrificing strength, as they reduce the overall weight while maintaining their structural integrity.

• Benefits of Using Shafts:

  • Efficient Power Transfer: Shafts are designed to efficiently transfer rotational motion and torque from one part of a system to another, ensuring smooth and effective operation.
  • Durability: Made from strong materials, shafts are designed to withstand wear and tear, allowing for long-lasting performance in demanding applications.
  • Versatility: Shafts are highly versatile and can be used in a wide range of industries, from automotive to manufacturing, providing reliable movement and power transmission across many applications.
  • Customization: Shafts can be custom-designed to meet specific operational requirements, including adjustments for size, material, and load-bearing capacity, ensuring optimal performance in tailored systems.

• Maintenance and Care: To ensure optimal performance, shafts should be regularly inspected for wear, corrosion, or misalignment. Proper lubrication is also necessary to reduce friction and prevent premature wear. Regular maintenance and proper handling of shafts help extend their lifespan and maintain the efficiency of the mechanical system in which they are used.
